Ashby
Clippesby
drainage pump
River Bure

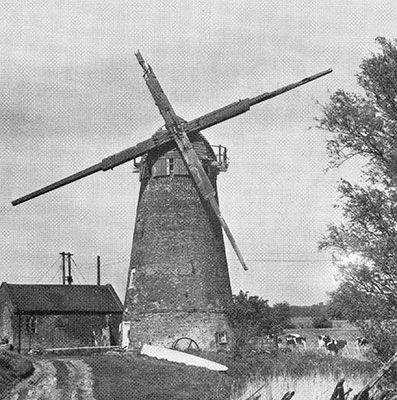

May 1972
May 1972

Ashby Clippesby mill is one of the older mills, being originally built with older type narrow bricks before being heightened to 41 ft to the top of its cap, using a more modern style of wider brick, possibly in 1814. The mill had a Norfolk boat shaped cap with a petticoat and gallery. By the 1970s a modern brick pumphouse had been built close by to take over the work of the mill.

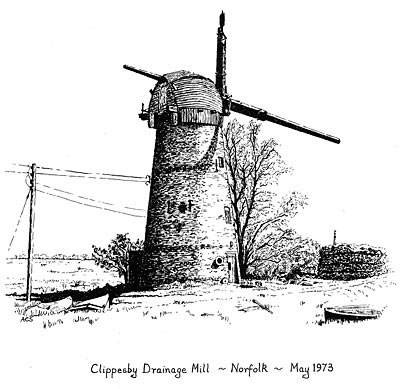

May 1973 drawing by Arthur C. Smith
May 1973 drawing by Arthur C. Smith

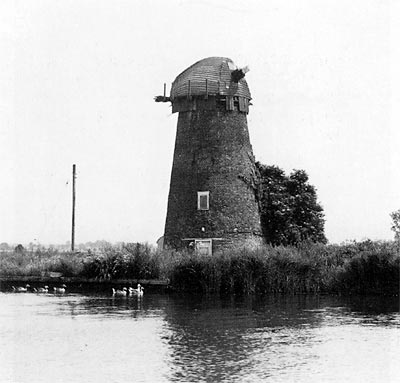

14th July 1987
14th July 1987

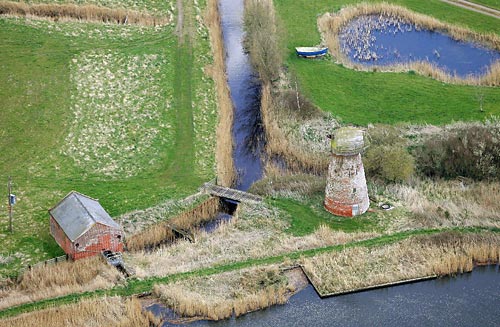

9th April 2008
9th April 2008

Clippesby Mill does not have the appearance of a converted mill, with its sturdy red brick tower still supporting a boat cap, windshaft and internal machinery.
Drainage Windmills of the Norfolk Marshes - Arthur C. Smith, 1990


9th April 2008
9th April 2008

As another example of a mill still standing the following description of Clippesby Mill on the River Bure, given to me by Vincent Pargeter, is of particular interest. The mill has four storeys and is 41 feet high to the top of the cap, with an overall base diameter of approximately 21 feet and 13 feet diameter at the top of the tower below the cap: there are two opposite doors and a window at each storey except for the top one. Vincent says, 'The mill has obviously been lived in during its working life, and has a bricked-up fireplace on the ground floor opposite the scoop wheel shaft exit arch. The ceiling of the first floor was plastered as small remnants testify. There are also small cavities in the wall low down which suggests built-in bunks or settees lining about half way round. It is also evident from cavities in the wall that there was once a staircase from the ground floor to the first floor, but this has later been replaced by a ladder ... The mill is an old one, and we have found the date 1814 carved in the brickwork inside. This may not be the date of the building, as the oldest part of the mill is is built of thin bricks, and the walls are 3 feet thick up to waist height on the ground floor. The tower has been heightened by about 8 feet with thicker bricks, but this is not very noticeable from the outside, as the batter of old and new work are nearly the same. The mill still has windshaft, clasp-arm wooden brake wheel, all cast-iron wallower, one piece pine upright shaft, all cast-iron crown wheel with spur teeth. The pit wheel and wheel shaft have gone. There was a scoop wheel to the last, but this has now gone ... The mill was converted as a weekend retreat in 1958 , but in 'spartan' manner.
Drainage Windmills of the Norfolk Marshes - Arthur C. Smith, 1990

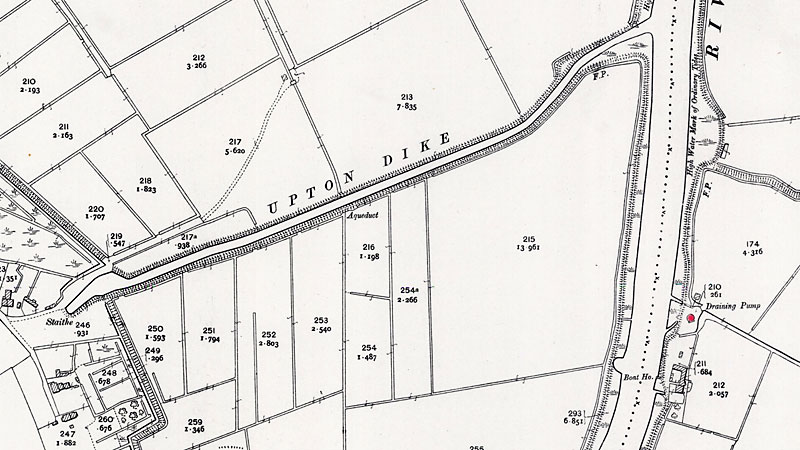

O. S. Map 1905
O. S. Map 1905
Courtesy of NLS map images

1958: Mill converted to basic holiday accommodation

1978: Mill struck by lightning and sail stocks subsequently removed

c.1989: Vincent Pargeter

June 2022: Mill advertised for sale for £600,000

If you have any memories, anecdotes or photos please let us know and we may be able to use them to update the site. By all means telephone 07836 675369 or

Nat Grid Ref TG 409211281
